New content-box and stroke-box in Firefox

The latest Firefox release 125.0.1, gives web developers a powerful tool to fine-tune element transformations. By adding the content-box and stroke-box keywords to the transform-box property, web developers now have more precise control over exactly how transformations are applied to elements on their pages. This change opens up new possibilities for design and animation, especially when working with graphic elements and SVGs.

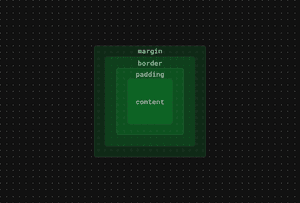

The transform-box CSS property specifies the area of an element to which transformations apply. Previously, the support was primarily limited to border-box and view-box, which already provided developers with some flexibility. However, with the introduction of content-box and stroke-box, developers can now manage transformations with even greater precision, which is particularly vital when creating complex, interactive, and visually appealing web applications.

Let's see how we can put this into practice.

Cases with transform-box

The transform-box property in CSS specifies the area relative to which transformations such as rotate, scale, offset, and distort are applied. This property becomes crucial when managing transformations that extend beyond the container's rectangular frame. It is particularly important when these transformations also exceed the visible area of the element.

By default, transform-box has a view-box value that indicates that transforms should be applied relative to the SVG element's view-box or HTML root element. However, if border-box is used, transforms will be applied relative to the boundaries of the element's box. This makes border-box useful for HTML elements where you need to control the transformations by focusing on the outer dimensions of the element.

Here is a code sample that demonstrates the standard use of transform-box:

.element {
  transform: rotate(45deg);
  transform-box: border-box;
}

In this case, the transformation as a 45-degree rotation will be applied to the .element relative to its outer borders, including frames and indents. This makes the visual appearance of the transformation predictable.

Now that Firefox 125.0.1 adds support for the content-box and stroke-box keywords, developers have even more control. Content-box applies transformations based on the inner content area of the element, eliminating frames and indents. This is ideal for accurately manipulating elements without regard to their external design.

.element {
  transform: scale(1.1);
  transform-box: content-box;
}

In this example, scaling is applied strictly to the .element content area, which allows for greater precision in visual effects, especially when the element's border and indentation are significant.

The content-box and stroke-box keywords affect the behavior of the transform CSS property by changing the "reference area" that is used to perform transformations. This determines exactly how transformations such as move, scale, rotate, and distort will be applied to the element.

Effect of content-box on transformations

When the content-box value is used for the transform-box property, transformations are strictly applied to the content area of the element. This means that any CSS transformations will relate only to the inner content area, excluding internal padding and borders. This approach enhances precision in scenarios where visual changes must align strictly with the content of the element. It ensures that these transformations are not affected by external styles, which could otherwise alter the element's size or position.

Example:

Let's assume we have a text block that we want to scale:

.text-block {
  padding: 20px;
  border: 5px solid black;
  transform: scale(1.1);
  transform-box: content-box;
}

Here, the scaling will only apply to the text inside the .text-block, not affecting its border and padding. This is ideal for interfaces where it is important to keep the element's borders intact during animations and transformations.

Effect of stroke-box on transformations

Stroke-box directs transformations to the full visual area of an element, including its stroke. This is particularly relevant for SVG elements, where the stroke can significantly affect the visual perception of the object. When using stroke-box, transformations take into account the entire visual boundary of the element, including its stroke. This method ensures that the effects on the element are precise and predictable.

Example:

For an SVG element with a stroke:

.svg-icon {
  stroke-width: 5px;
  transform: rotate(45deg);
  transform-box: stroke-box;
}

When rotated by 45 degrees, the entire element and its stroke will rotate together as one unit. This ensures that the design maintains its consistency and precision.

The use of content-box and stroke-box modifies how the transform property interacts with elements. This change allows for more precise control over the response of these elements' areas to various transformations. This provides developers with additional tools for creating more complex and dynamic visual effects on their web pages.

Practical scenarios for using content-box and stroke-box

The support for the keywords content-box and stroke-box in the transform-box property opens up new possibilities for web developers. Let's consider several specific scenarios where these properties can be particularly useful, and also offer recommendations for their effective use.

Usage Scenarios:

• Adaptive interfaces with dynamic content: Content-box may be ideal for elements with changeable content, where it's crucial that transformations do not affect the appearance of external borders and padding. This is especially relevant for components such as buttons with text that may change depending on the state or language of the interface.
• Complex graphic elements and icons: Using stroke-box in SVG graphics allows for precise control over transformations of elements with a stroke. This is useful for creating interactive icons or graphics where every change in size or rotation must precisely match the visual boundaries of the element.
• Complex animations and transitions: Content-box and stroke-box can be used to create complex animations where precise manipulation of transformation areas is needed to achieve the desired visual effect, for example, in animations for opening or closing interface elements.

Recommendations for use:

Testing on different devices:

Since visual perception and reactions to transformations can vary depending on the device and browser, you should test interfaces on various platforms, especially when using complex transformations with content-box and stroke-box.

Considering behavior during resizing and reflow:

It's important to consider how transformations affect elements when resizing the browser window or changing the content of elements. For example, when using content-box, ensure that scaling or other transformations do not cause unexpected content overflow.

Integration with existing CSS frameworks and libraries:

When integrating new properties into projects with existing CSS frameworks or libraries, check how changes behave in combination with already applied styles and classes to avoid conflicts and styling errors.

Using content-box and stroke-box can significantly enhance the quality and manageability of visual effects in your projects, provided thorough testing and adaptation to specific requirements and conditions.

Wrapping up.

The examples provided above demonstrate just a fraction of the potential unlocked with the support for the content-box and stroke-box keywords in the transform-box property in the latest Firefox update 125.0.1. These new capabilities are now available in all modern browsers, making their use even more appealing to developers.

The essence of CSS lies in its ability to easily adapt and extend basic examples to more complex use cases. For example, you might configure transformations of elements based on changes in data or accessibility attributes, which can significantly enhance the interactivity and dynamism of the user interface.

.element[aria-expanded="true"] {
  transform: scale(1.1);
  transform-box: content-box;
}

No matter what tasks you are tackling, the new keywords for transform-box provide powerful tools for fine-tuning visual effects. Their full support in browsers opens up wide possibilities for developers to experiment and enhance user interfaces.
